Small Compact Handheld Pulsed Fiber Laser Cleaning Machine
| Category | Laser Cleaning Machine |
| Model No. | BE-CL100/BE-CL200 |
| Views | 54500 |
| Rating | ★★★★★4.7/5 Based on 1000 Votes |
| Price Range | US$5599-US$9899/Set |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Production Leading Time | 7-15 Days |
| Shipping | Air/Sea/Train/Truck |
| Warranty Period | Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
The Pulsed Fiber Laser Cleaning Machine is a cutting-edge technology that offers a safe and efficient way to remove contaminants, deposits, and coatings from a variety of surfaces without damaging the underlying material. It utilizes a high-powered laser beam to generate powerful bursts of energy that quickly clean the surface without damaging it. This advanced technology is capable of cleaning surfaces accurately and quickly, while being gentle enough to avoid any damage.
Laser Cleaning Advantages:
- The laser cleaning head can be cleaned in either a fixed or hand-held position.
- Laser cleaning is a form of “green” cleaning as compared to conventional cleaning methods such mechanical friction cleaning, chemical corrosion cleaning, liquid solid strong impact cleaning, and high-frequency ultrasonic cleaning. Chemicals or solid powders are not necessary.
- Traditional cleaning is frequently contact cleaning, which harms the surface of the cleaned object or the cleaning medium is adhered to the surface of the object to be cleaned and cannot be removed, resulting in secondary pollution. Non-contact makes these challenges easy; The laser can be delivered through the optical fiber and collaborate with the robot hand and robot, allowing for easy long-distance operation and cleaning of sections that are usually difficult to reach. This can be utilized in hazardous environments to ensure personnel safety.
- Laser cleaning may remove many types of impurities from the surface of various materials and achieve cleanliness that traditional cleaning cannot. It may also clear impurities on the material’s surface selectively without affecting the material’s surface.
- Cleaning using a laser saves time.
Good Features
- Control system for a 27-inch trolley case with a built-in laser, a laser head, and accessories
- Advanced user and regular user dual operating interface with one-touch operation
- Products of recognized international brands
- Switch time for handheld and robotic laser heads is 5 seconds.
- Environmentally friendly: The most environmentally friendly industrial cleaning method
Parts Introduction
Laser Cleaning Head
- The handheld and automatic 2D laser head of the fourth generation.
- Integrates well with automation and is simple to hold.
- It is simple to use and offers a variety of functions.
Controlling Software
- Prestore all kinds of parameter visuals, 6 kinds of graphics can be selected: a straight line, a spiral, a circle, a rectangle, a rectangle filled with circles, and a circle filled with rectangles
- Simple to use and operate
- Simple user interface
- 12 distinct modes can be swiftly switched and selected to help with production and debugging in China, English, and other languages.
Fiber Laser Source
- With high average power, high single pulse energy, square or round homogenized spot output, and simple operation and maintenance.
- Specifically designed for rust removal, cleaning oil and filth from metal surfaces, cleaning mold surfaces, cleaning item surfaces, removing paint, stripping stone statues, removing attachments from surfaces, removing welding surfaces, and spraying surface pre-treatment.

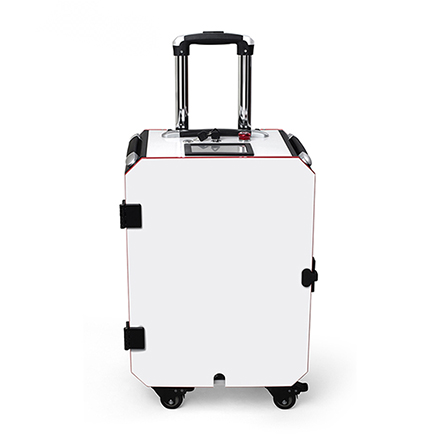

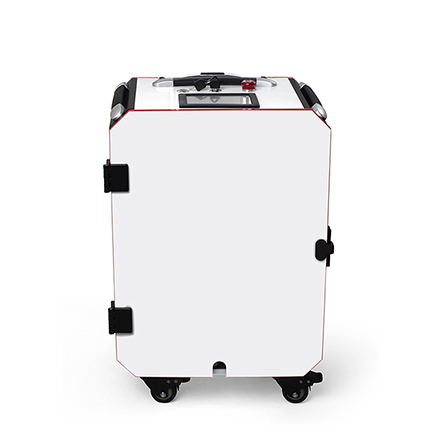

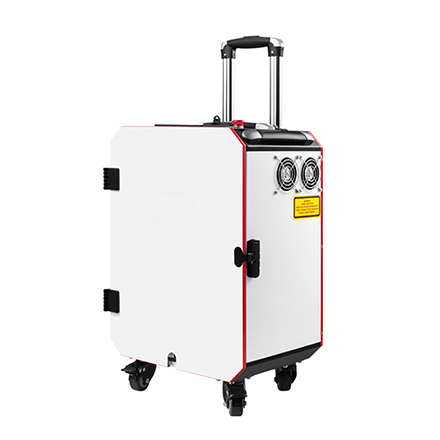

Trolley Case Structure
- Portable trolley case with a diameter of 27 inches.
- Meeting European quality and safety standards
- Indoor and outdoor use
Application
Pulsed fiber laser cleaning machines provide a number of benefits to industrial and commercial operations, including the removal of rust, paint, and other coatings without damage to the underlying substrate. These machines are safe and easy to use, and can be used in a variety of industries, including automotive, aerospace, medical, and more.
| Max Average Power(W) | 100W | 200W |
| Output Central Wavelength(nm) | 1064±5 | 1064±5 |
| Beam Quality(M2) | ≤1.6 | ≤1.8 |
| Power Adjustment Range(%) | 10-100 | 10-100 |
| Output Power Instability(%) | ≤5 | ≤5 |
| Pulse Repetition Rate(kHz) | 20-400 | 20-2000 |
| Pulse Length(ns) | 10/20/30/60/100/200/250/350 optional | 10/30/60/240 optional |
| Max Pulse Energy(MJ) | 1 | 1 |
| Fiber Length(m) | 3 | 3/5 |
| Laser Safety Classification | 4 | 4 |
| Cooling Method | Air cooling | Air cooling |
Package and Shipment
| Model | Package Size | Gross Weight |
| BE-CL200 | 0.64m×0.51m×0.78m, 0.25CBM | 100KG |
 |
 |
 |
| Inside layer is covered by thickening plastic film and fastened. | Middle Layer wrapped by thick sponge foam to avoid shaking on the way. | Outer layer packed by professional export thick wood craftcase. |
-
