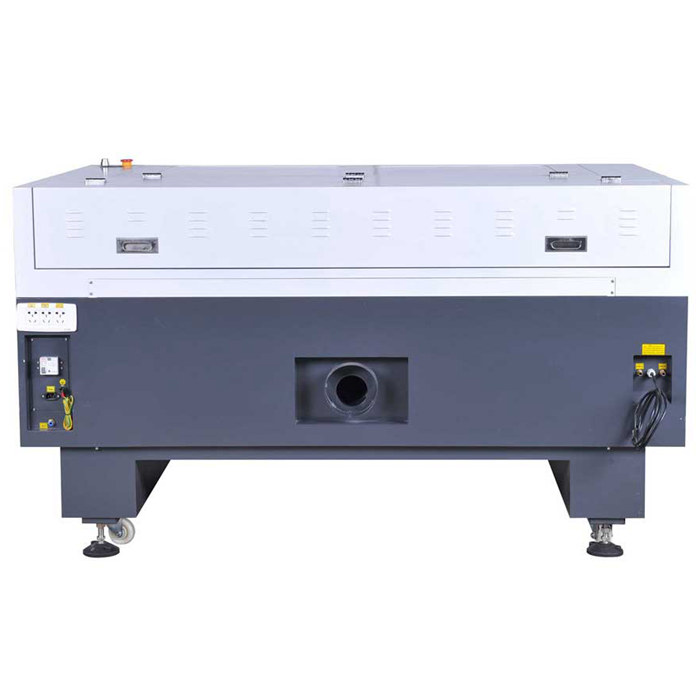

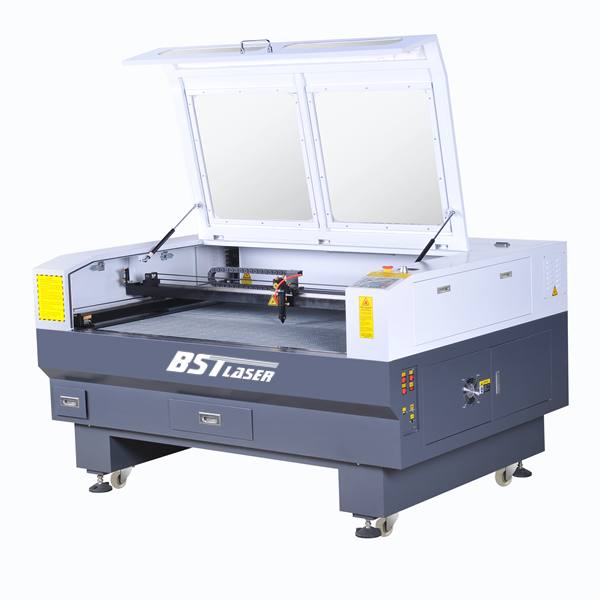

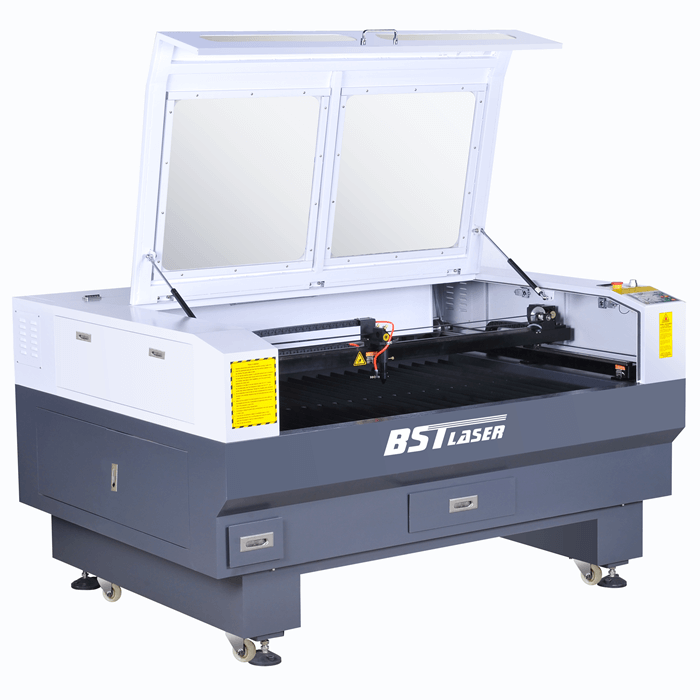

150w Co2 Laser Wood Cutter Machine 1610
| Category | Co2 Laser Cutting Machine |
| Model No. | BE-DK1610 |
| Views | 3500 |
| Rating | ★★★★★4.9 Based on 500 Votes |
| Price Range | US$2500 – US$5500/set Based on the Features |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Production Time | 10-15 Days |
| Shipping | Sea/Train/Truck |
| Warranty Period | Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
A 150W CO2 laser wood cutter machine can be a great investment for any woodworker looking to invest in powerful, precise, and efficient cutting technology. This machine can cut through a variety of materials and can be used for both decorative and industrial applications. It is capable of cutting through a variety of materials, including wood, plastics, foam, and paper. The laser is able to cut intricate shapes with a high degree of accuracy.
Machine Feature：
- Co2 Laser Cutter Engraver 1610 has heavy-loading machine constructions and designs that allow for continuous operation for 24 hours, and the steel structure can last for over 50 years without deformation.
- Use LCD Touch Screen, support USB Port, and DSP Offline Control System, insert U disk to perform USB Communication.
- Imported high precision linear guide rail and professional optical system of the laser cutting and engraving machine, dust-proof and lubricating, increase engraving quality and extend machine lifetime.
- Professional Honeycomb or Strip work tables are available to accommodate various laser processes. They are also outfitted with high-end consumables such as USA-imported focus lenses and reflect mirrors, Chinese Reci Laser tubes, and RF metal tubes, which result in stable, high-efficiency operation.
- Adopt a high-speed step motor and driver, litter error, numeral timing, simulation quantum control of laser power, high-precision repetition, and engrave 11mm small English characters.
- The Red Light Pointer determines the exact position without the need for a laser.
- Waste collection equipment that makes it simple to gather samples and save raw materials.
Parts Introduction
Heavy Loading Machine Structure
- One molding, 150KG, annealed and digitally CNC machine processed, bearing capacity not easily deformed.
- The frame is built of 100X100 metal tubing, which ensures strong stability.
Ruida Controlling System
- Ruida Technology’s DC6445G technology is the latest generation of co2 laser control. It has improved hardware stability as well as resistance to high voltage and static electricity. The human-machine operating system, which is based on a 5-inch color screen, offers a more user-friendly interface and more powerful functions.
Exquisite Cutting Head
- The enclosed jet design of the laser head of the laser machine 6040 protects and cleans the lens.
- Lightweight but elegant, it is ideal for high-speed engraving and cutting.
Cutting Table
Both a strip blade table and a honeycomb table are available.
- Strip blade table for heavy materials including acrylic, wood, MDF, and plastic
- Honeycomb tables made of light materials like leather, cotton, and textile
Glass Laser Tube
Top Reci Brand with a 10-year warranty
Original label and code on that, which clients may view on the official website
Linear Guide Rail
- Top Chinese-made brands Hiwin and PMI guide rail offer great cutting precision and stability throughout processing, with optional Japan-imported SMAG as an option.
Reflect Mirror& Lens
- Imported lenses from the USA of high caliber guarantee more exact beam focusing, a finer beam, and longer life.
Red Light Pointer
- Making the laser visible and easy to frame assures great cutting precision and simple operation.
Industrial Water Chiller
- Adopt a CW-5000/CW5200 Water Chiller with a temperature display to prevent overheating and safeguard the water circulation from power outages.
Application
| Material | Cut | Engrave |
| Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate | √ | √ |
| Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester | √ | √ |
| Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood | √ | √ |
| Leather, Pig leather, Cow Leather, Sheep leather | √ | √ |
| Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece | √ | × |
| Foam& Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR) | × | × |
| Neoprene | × | × |
| Paper, Cardboard, Chipboard, Press Board | √ | √ |
| Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate | √ | √ |
| Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam | √ | √ |
| Silicone rubber, Synthetic rubber | √ | √ |
| Glass,Pressed glass, Float glass, Crystal glass, Mirror glass | × | √ |
Optional Items
Motorized Up and Down System with Auto Focus Function
Stainless steel ball screw ensures excellent lifting precision, no rusting, and long life.

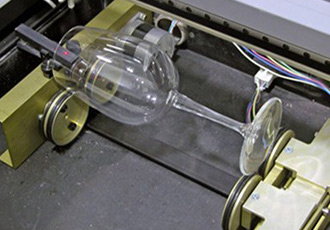

Rotary System
Rotary engraves cylindrical or column workpieces in a circle.
Double Working Table for Different Applications
Perfect choice for engraving and cutting, meeting different materials applications.

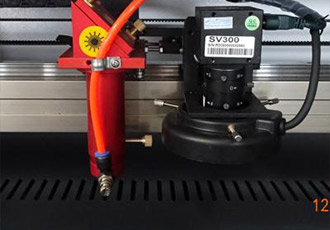

CCD Camera System
Auto Nesting+Auto Scanning+Auto Position Recognition, or cutting a printed image, such as a logo or a picture on a t-shirt, etc.
Vacuum Absorbing Table
Soft materials can be closely absorbed by the working table.
Auto Feeding & Rolling System
Suitable engraving/cutting on a very long work piece, allowing the entire textile processing to be completed at once.
| Items | BE-DK1610 |
| Laser Type: | Hermetic and Detached CO2 Laser Tube |
| Laser Wavelength: | 10.64um |
| Laser Power: | 80w 100w 130w 150w 180w |
| Working Area: | 1600×1000(mm) |
| Engraving Speed: | 0-1000mm/s |
| Cutting Speed: | 0-600 mm/s |
| Resetting Positioning Accuracy | <0.01mm |
| Minimum Forming Character | English: 1×1mm, Chinese: 1.5×1.5mm |
| Power Supply | 220v10% (50hz or 60hz) |
| Software Supported | ArtCut,Photoshop (Conversion Output) CorelDraw and AutoCAD(Direct Output) |
| Graphic Format Supported: | PLT/DXF/DST/BMP/AL etc.(Direct Output) |
| Optional Items |
1)Motorized Up and Down Table 2)Auto Focusing Function 3)Rotary System |
| Working Environment: | Temperature: 0-45℃ Humidity: 5%-95% |
| Driver Way: | Digital Subdividing Step Driver |
| Laser Device Cooling Type | Circulating Water Cooling |
Package and Shipment
| Model | Package Size | Gross Weight |
| BE-DK9060 | 2.3m×1.7m×1.25m,4.888CBM | 580KG |
 |
 |
 |
| Inside layer is covered by thickening pe film and foam for waterproof. | Middle layer is covered by foam to protect the machine from shaking | Outside is with fumigated Wooden Box which comply with export standard |
-
