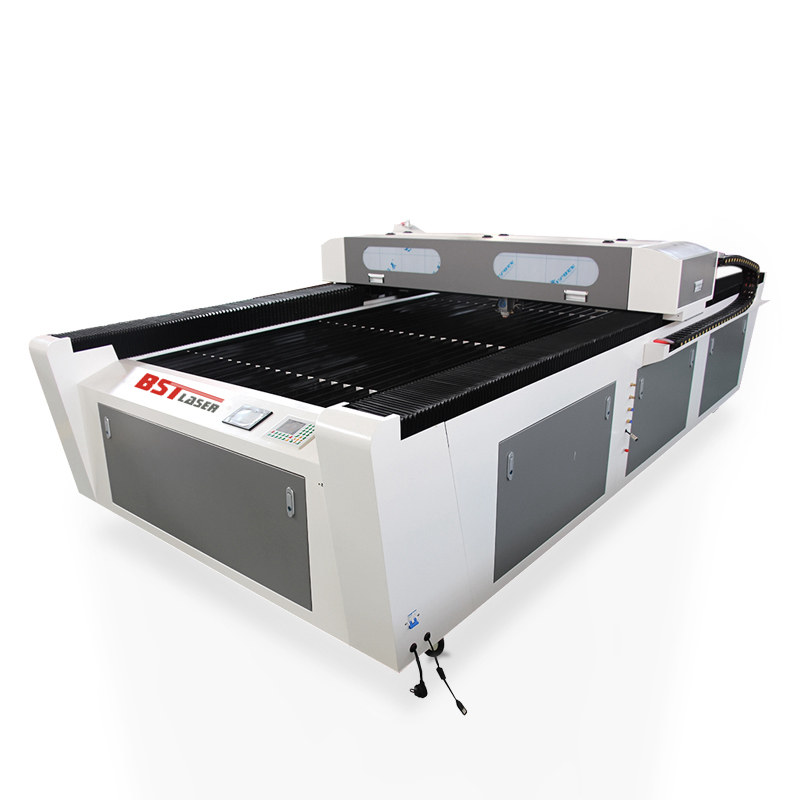

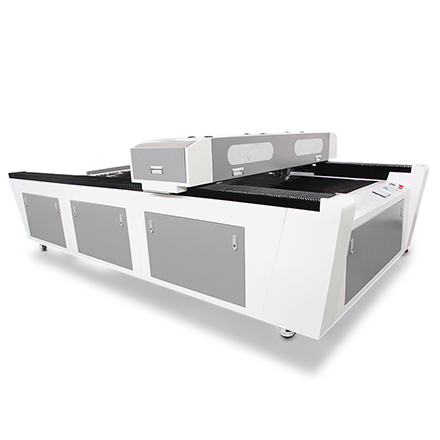

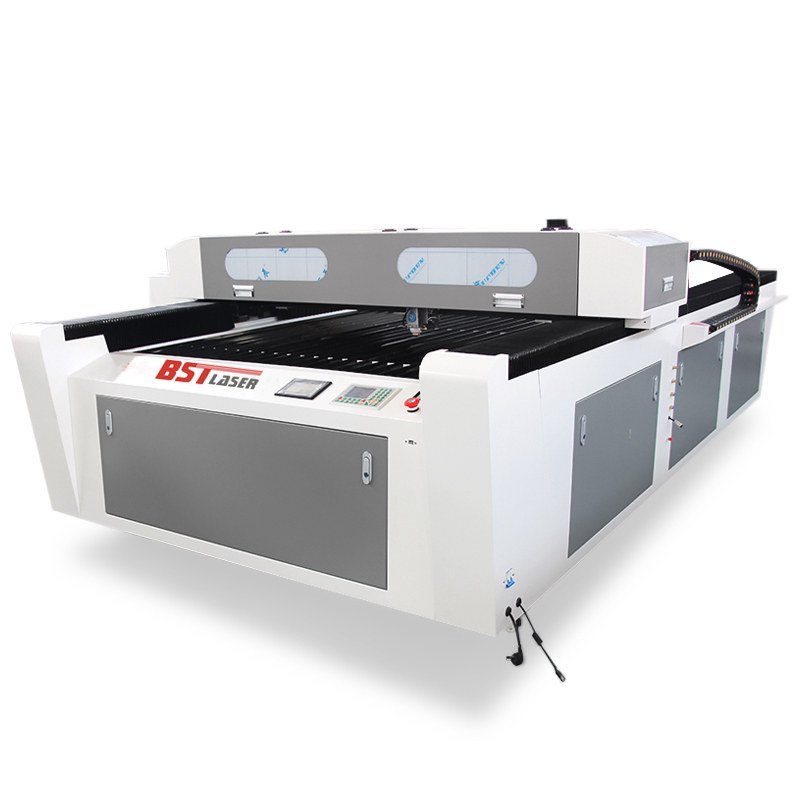

180W 260W 300W 1325 Mix Laser Cutting Machine
| Category | Co2 Laser Cutting Machine |
| Model No. | BE-DK1325M |
| Views | 64800 |
| Rating | ★★★★★ |
| Price Range | US$6500 – US$13500/Set |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Leading Time | 7-15 Days |
| Shipping | Sea/Train/Truck |
| Warranty Period | Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
Mix Laser Cutting Machine is an incredibly versatile and powerful tool that is capable of cutting a variety of materials with precision and accuracy. It is the perfect choice for any industrial or commercial application that needs to be quickly and accurately cut through a variety of materials. It is capable of cutting through a wide range of materials, can be used for precision engraving, and is easy to operate.
The transmission section makes use of a high-precision guide rail and a high-speed stepping motor, as well as embedded computer control, DSP digital high-speed processing technology, offline operation, and a humanized operation interface. The laser power and cutting speed are also adjustable. It’s the greatest option for both metal and nonmetal processing.
| Cutting Thickness Table | |||
|---|---|---|---|
| Material | Thickness | Speed | Auxiliary air |
| Carbon steel | 0.5mm | 40-50mm/s | Oxygen |
| 1.0mm | 30mm/s | ||
| 1.5mm | 16-20mm/s | ||
| 2mm | 10mm/s | ||
| Stainless steel | 0.5mm | 40-50mm/s | Oxygen |
| 1.0mm | 30mm/s | ||
| 1.5mm | 16-20mm/s | ||
| Acrylic | 20mm | 2-3mm/s | Air |
| MDF/ Plywood | 10-15mm | 10-15mm/s | Air |
| Carbon steel | 0.5mm | 55 mm/s | Oxygen |
| 1.0mm | 45 mm/s | ||
| 1.5mm | 30 mm/s | ||
| 2.0 mm | 25 mm/s | ||
| 3.0mm | 10 mm/s | ||
| Stainless steel | 0.5mm | 60-70mm/s | Oxygen |
| 1.0mm | 50mm/s | ||
| 1.5mm | 25-30mm/s | ||
| 2.0mm | 15 mm/s | ||
| Acrylic | 20mm | 3-5 mm/s | Air |
| MDF /Plywood | 10-15mm | 15-20 mm/s | Air |
Good Features
◆ Multifunctional Use:
This machine can cut metal and nonmetal materials including wood, acrylic, plastic, bamboo, stainless steel, carbon steel, iron, and so on.
◆ Auto-focusing:
The machine uses cutting-edge American technology to achieve auto-focusing when working with various materials.
◆ High Precision Cutting:
Heavy-duty machine structure for long-term usage without deformation, ideal for bulk production.
◆ CCD:
The machine can be outfitted with a CCD camera for high-precision positioning and contour edge cutting.
◆ Software:
The most recent Ruida controlling software supports 12 languages, making it suited for global consumers.
◆ Laser Glass Tube:
Using a long-life 10000h Co2 laser tube and lens mirrors imported from the United States, the laser beam is narrower, lowering the cost of operation consumables.
◆ Chiller:
Intelligent temperature display for industrial water cooling system.
Parts Introduction
Strong Machine Body
- With a high-strength and heavy loading steel frame that ensures excellent cutting precision and non-deformation for more than 20 years, fiber metal laser cutting machines are designed to meet these standards.
Personalized Control Panel
- Colorful LCD Display + USB Port + DSP Offline Control
- The most recent laser cutting control system version has improved hardware stability and tolerance to high voltage and static electricity.
Co2 Beam Combined Laser Device
- Adopted proprietary technology, integrated light combining device, to concentrate light energy and increase beam quality.
- Single tube output and double tube synchronous control are both available, as is continuous adjustable power output.
- All-metal construction provides greater protection.
- The lifetime of kovar sealing technology and inner catalyst is more than 10000 hours.
Dynamic Auto Focusing Head
- The dynamic focus laser cutting head can automatically adjust the focusing distance when the metal sheet is not flat. Recognize the cutting effect’s correctness.
- It is simple to change from metal to nonmetal.
Helical Gear Rack
- The machine has a rack pinion transmission, which ensures high cutting precision and smooth operation even at high speeds.
CCD Camera Version System
- Automatic Nesting + Automatic Scan It has automated position recognition and can scan and trim the edges.
Industrial Water Chiller
- To safeguard the water circulation from power outages, use a CW-5000/CW6000 Water Chiller with a temperature display.
High Quality Reflect Mirror& Lens
- High-quality USA-made lenses that are imported guarantee better beam focusing, a finer beam, and longer life.
Application
Mix Laser Cutting Machines are a great tool for cutting materials with precision and accuracy. They are perfect for a wide range of applications, from small intricate designs to large-scale industrial projects. Mix laser cutting machines are an invaluable tool for manufacturers and hobbyists alike.
Widely used in sheet metal processing, kitchenware and bathroom, advertising signs, lighting hardware, electrical cabinets, auto parts, machinery and equipment, electrical equipment, precision parts, and various metal products cutting and processing industries.
Optional Items

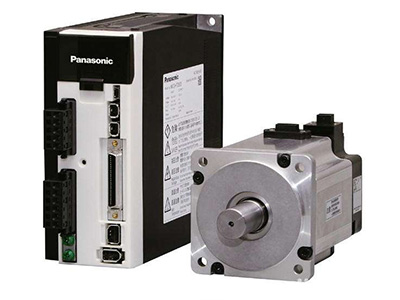

Servo Motor
The standard configuration includes a three-phase step motor and a servo motor, which ensures great cutting precision and low noise.
Ball Screw Transmission
The standard transmission is by belt, but ball screw transmission ensures good cutting precision during processing at high speeds
CW-6000 Industrial Water Chiller
Large industrial water chiller, typically for power >300w, to maintain machine stability and long-term operation
| ModelWorking | BE-DK1325M |
| Area | 1300*2500mm |
| Laser Power | 150w 180w 260w 300w |
| Laser Type | CO2 Sealed Laser Tube, 10.6um |
| Transmission Method & Driving System | Standard Machine Use Gear Transmission + Chinese Top Brand “Leadshine” Step Motor and Driving System |
| Optional Machine use Ball Screw Transmission + Japan Imported Servo Motor and Driving System | |
| Cooling Type | Water Cooling, 150w-180w Machine use CW-5000, 260w-300w Machine use CW-6000 |
| Working Table | Stainless steel and knife table |
| Laser Output Control | (0-100% Set by Software ) |
| Smallest Character Engraving | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
| Highest Scanning Precision |
4000DPI |
| Positioning Accuracy | ±0.02mm/m |
| Positioning Speed | 20m/min |
| Max. Cutting Thickness | 40mm |
| Max. Cutting Speed | 20m/min |
| Graphic Format Supported | BMP, PLT, DST, DXF, and AI, etc |
| Compatible Software | CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software |
| Controlling software | Off-computer controlling system |
| Auxiliary Equipment | Exhaust Fan and Air Exhaust Pipe |
| Working voltage | AC110-220V ±10%/10A,50-60HZ |

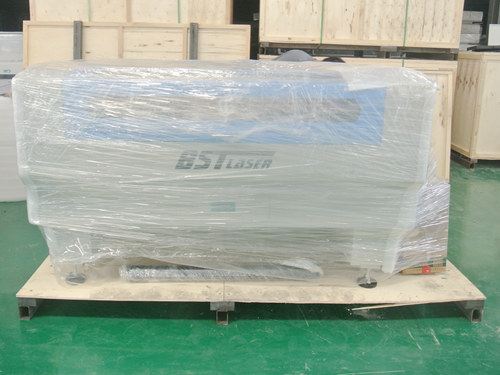

Package and Shipment
| Model | Package Size | Gross Weight |
|---|---|---|
| BE-DK1325M | 3.62m×2.25m×1.4m, 11.4CBM | 1100KG |
 |
 |
 |
| Inside layer is covered by thickening pe film and foam for waterproof. | Middle layer is covered by foam to protect the machine from shaking | Outside is with fumigated Wooden Box which comply with export standard |
-
