Automatic Accu-Clinch Letter Riveting Machine
| Name |
Automatic Accu-Clinch Letter Riveting Machine |
|
Category |
channel letter bending machine |
|
Model No. |
BEL-C200 |
|
Views |
2000 |
|
Rating |
4.8/5 Based on 1500 Votes |
|
Price Range |
$900 to $1200/set Based on the Features |
|
Payment Term |
T/T,Western Union, Paypal |
|
Production Time |
3-5 Working Days |
|
Shipping |
Sea/Train/Truck |
|
Warranty Period |
Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS

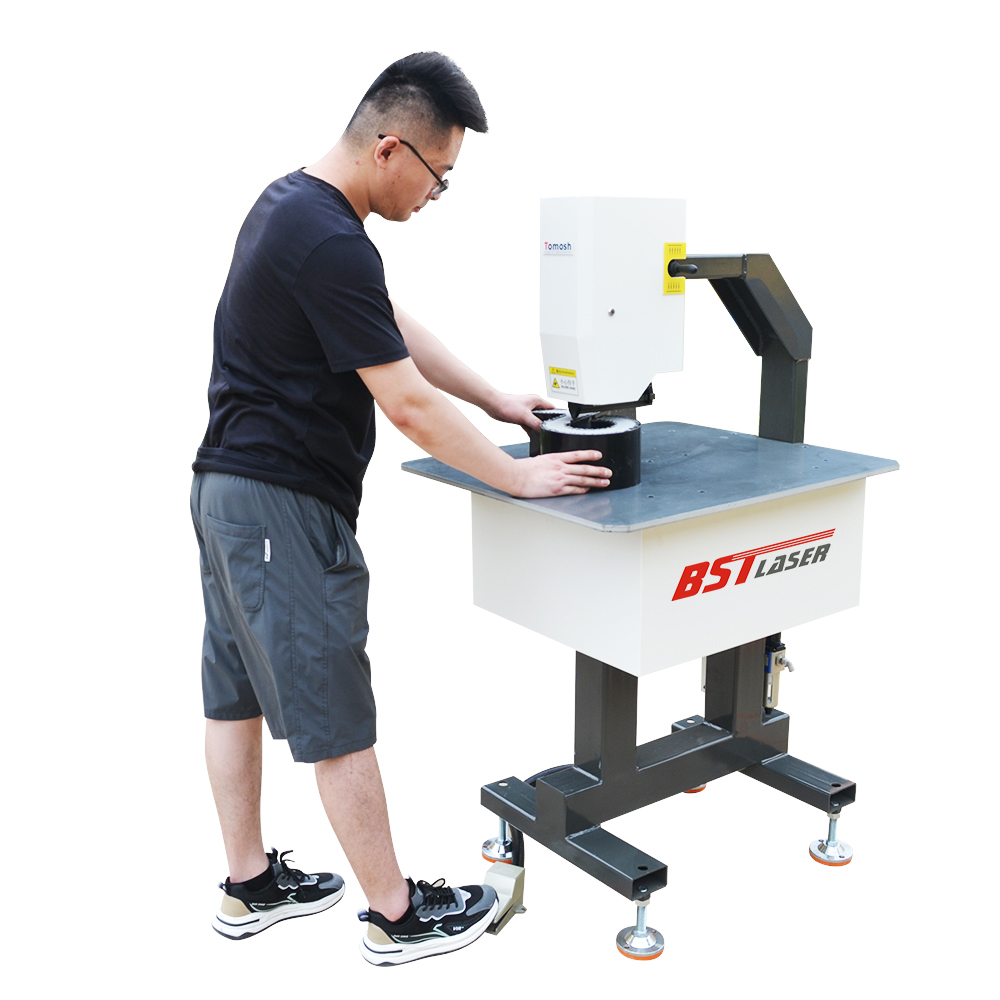

The pneumatic riveting machine are designed to quickly and easily fasten aluminum or light steel parts together,the automatic riveting machine is the fastest way to assemble the channels and back plates to create a completed channel letter.With this auto riveting machine,the operators can finish the letter making without pre-drilling and installing rivets. reduces the time required to attach the return to the letter backs from about 15-20 minutes down to about 4-5 minutes.
Technical Features
◆ The Auto Riveting machine significantly reduce installation time compared to manual riveting, enhancing productivity.
◆ Provide uniform rivet installations, ensuring high-quality joints.
◆ Can reach tight or hard-to-reach spaces, making them versatile.
◆ Capable of generating high pulling forces, suitable for various materials and thicknesses.

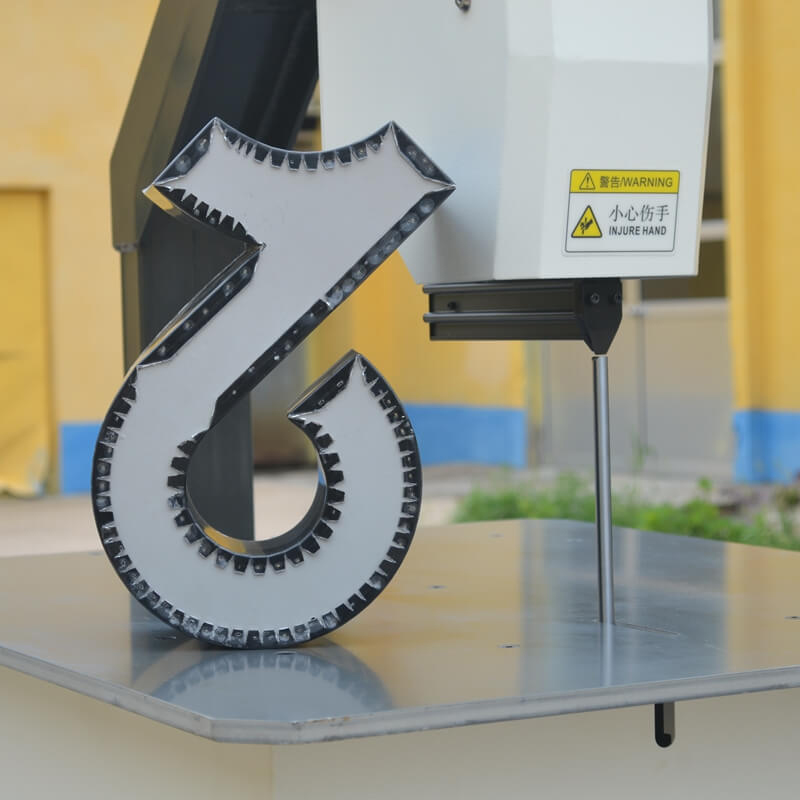

◆ Position Needle can adjusted in different directions like upward,center and backward.it can meet the processing requirements of letters in different sizes and shapes .
◆ Working table can lift up and down to fit for different letter size height
◆ This metal clinching machine is specially designed for matching with our auto V-cut Auto Notching Flanging Channel Letter Bending Machine X180,it can help clients improve the letter finished speed 50%.
Parts Introduction
Strong Machine Body
-
The riveting machine’s body adopts 4mm thick rectangular pipes with high structural strength.it ensures its stability and reducing the weight of the device.Equipped with adjustable foot supports that can be adjusted in height according to customer needs.
Foot Switch Controlling
-
Manual operation process is effectively reduced by using the pneumatic foot valve control. At the same time, the nail joint position can be flexibly adjusted according to different letter shapes, which is convenient and practical.
Table / Pin Adjustment
-
The height of table and the position of needle can be adjusted manually through a valve based on the height of materials used.Making the machine more flexible and fast in processing various letter shapes. More convenient in processing, effectively improving production efficiency.
Pneumatic Element
-
Using well-known China made pneumatic parts with superior quality, effectively ensuring product quality and service life.
Kind Operation Notice
- The machine is equipped with clear safety warning signs,effectively reminding operators to operate the equipment according to the operating procedures, ensuring safe production and reducing the probability of safety accidents Effectively ensure the safety of operators.
Humanized Design
- The height of the machine can be flexibly adjusted according to the height of the operator with the design of adjustable foot support .Sitting posture can be used to operate the machine, effectively reducing the labor intensity of operators.
Application
Pneumatic riveting machines are used across a wide range of industries, including:
Automotive: For assembling body panels, frames, and structural components.
Aerospace: Essential for joining airframe parts due to the high number of rivets required.
Construction: Used for fastening metal frameworks, ductwork, and enclosures.
Manufacturing: Ideal for assembly lines where consistent and high-quality riveting is necessary
| Machine Name | BEL-C200 Accu-Clinch Letter Riveting Machine |
| Function | Connect aluminum plastic sheet with aluminum plate by nails |
| Machine Size | L870mm*W710mm*H1500mm |
| Available Material | Aluminum Plate |
| Available Thickness | Aluminum Plate（0.6mm-1.2mm) |
| Table Adjustable Height | 100mm |
| Pin Adjustable Angle | 30° |
| Control Method | Pneumatic Foot Valve |
| Nails Type | F15/F10 |
| Air Pressure | 0.6-0.8Mpa |
| Available Thickness | Φ8 |
| Machine net weight | 120kg |
| Gross Weight | 180kg |
| Package Size | L1070mm*W910mm*H1750mm |
Package and Shipment
| Model | Package Size | Gross Weight |
| BEL-C200 | 107cm×91cm×175cm,1.704CBM | 180KG |
We have 3 layers package.
- Waterproof thickening plastic bag
- Foam to protect from shaking
- Non-fumigation wooden box which comply with export standard
-
