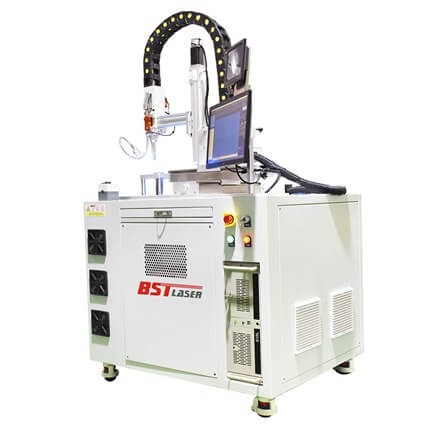

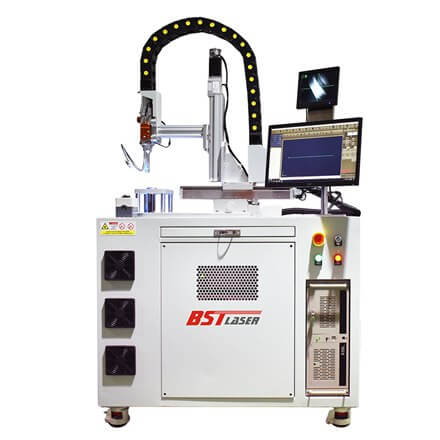

Metal Electric Heater Automatic Fiber Laser Welding Machine 1500W
|
Category |
Auto Laser Welding Machine |
|
Model No. |
BE-WF1500D |
|
Views |
65000 |
|
Rating |
⭐⭐⭐⭐⭐ |
|
Price Range |
US$3,999-US$11,999/Set |
|
Payment Term |
T/T Bank Transfer, Western Union, Paypal |
|
Production Time |
7-15 Days |
|
Shipping |
Air/Sea/Train/Truck |
|
Warranty Period |
Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
Integrating the customized fixture tool with automatic fiber laser welding machine, the laser technology can be applied on high precision welding of different materials, such as metal electric heaters, electronic parts, tools, medical parts…
Operators set up the parameters on software, and laser welding automatically. Saving maual work, ensure the high accuracy welding consistency and suitable for mass production.
Technical Features
* High precision: laser welding has extremely high precision and can achieve precision welding of tiny parts to meet the production needs of high-precision products such as electric heating tubes.
* High efficiency: laser welding has a fast speed, which can greatly improve production efficiency and reduce production costs.
* High quality: the welding joint has good quality, beautiful welds, no defects such as pores and cracks, and high welding strength.
* Flexibility: laser welding equipment has strong adaptability, can weld a variety of materials, and the welding parameters are adjustable to meet the welding needs of different products.
* Environmental protection: laser welding is a non-contact processing, without mechanical extrusion or mechanical stress, and does not pollute the environment.
Parts Introduction
Laser Welding Head
- Seamless optics design and water cooling laser head
-
Wobble function to cover the gap between welding materials
XYZ Electric Table
- Servo motor/step motors XYZ electric table
- Software control left/right/up/down
- XY moving range 300*300mm
- Laser head travel flexibly on the table
- Precise position
Fiber Protection Chain
- Fiber cable full protection
- Water pipe/gas pipe/fiber cable layout scientifically
Controlling PC&Observing Screen
- Adopts CNC2000 controlling software, easy to use and powerful functions.
- Parameters and welding setup on the software.
- Separate CCD screen to observe the welding process.
Fixture Tool
- Customized fixture tool according to the materials size and shape
- Suitable for standard products mass production
- Metal electric heaters, hardware, electronics, parts…multi-functional application
Coaxial Gas Blowing
- Coaxial as blowing(Argon or N2) to protect the optic lens
- LED lights help observe the welding process.
Fiber Laser Source
- The automated fiber laser welding equipment uses a fiber laser source, which produces a high-quality beam with a fine welding spot.
- The coupling efficiency is great when optical fiber is used as the wave-guiding medium.
- The lifespan of over ten years, without
- consumables and without the need for maintenance.
Water Chiller
- Cooling the laser source and laser welding gun.
- Intelligent water chiller with temperature setup automatically.
- Durable use and stable performance.
CCD Camera
- CCD camera resolution adjustable
- Easily rotating the knob

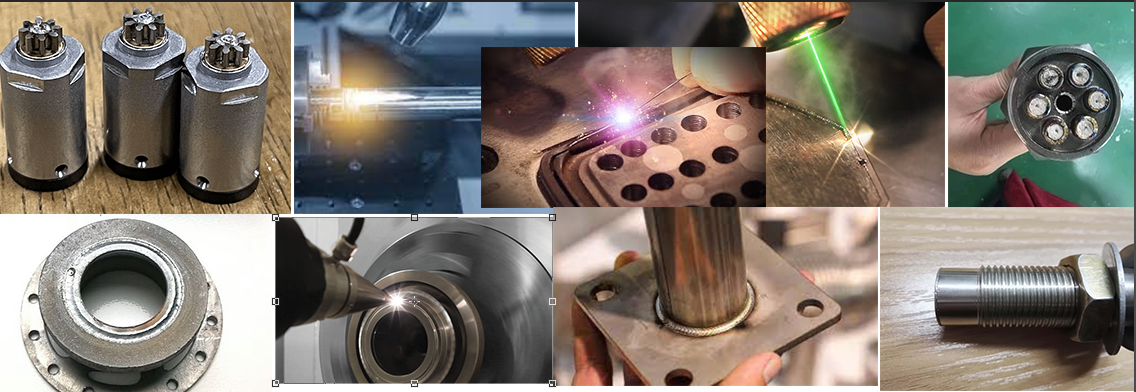

Application
Metal electric heaters, auto parts, home appliances, electronic components, metal products, etc. especially in the new energy vehicle power battery, automotive electronics, home appliance manufacturing and other industries.
|
Product Name |
Multifunctional Fiber Laser Welding Machine |
|
Laser Wavelength |
1064 nm |
|
Peak Output Power |
100W-3000W adjustable |
|
Focused spot diameter |
0.2-3 mm |
|
X-axis and Y-axis travel |
X*Y=300 mm*300 mm |
|
Platform size |
X*Y=400 mm*400 mm |
|
Moving speed range |
0-50mm/s |
|
Reset accuracy |
0.03mm |
|
positioning accuracy |
Less than 0.025mm |
|
Z axis |
Electric lifting height 200 mm |
|
Rotary fixture (optional) |
100mm Diameter Rotary Device |
|
Display mode |
Observation of Coaxial CCD LCD Screen |
|
Location mode |
Red light |
|
Control system |
Industrial Computer CNC2000 Control Software |
Package and Shipment
| Model | Package Size | Gross Weight |
| BE-WF1500D | 1.2*1.1*1.9M | 300KGS |
 |
 |
 |
| Inside layer is covered by thickening plastic film and fastened. | Middle Layer wrapped by thick sponge foam to avoid shaking on the way. | Outer layer packed by professional export thick wood craftcase. |
-
