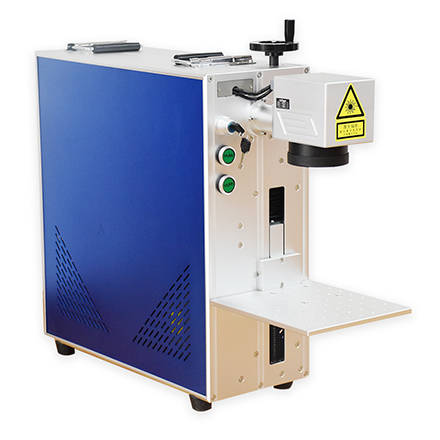

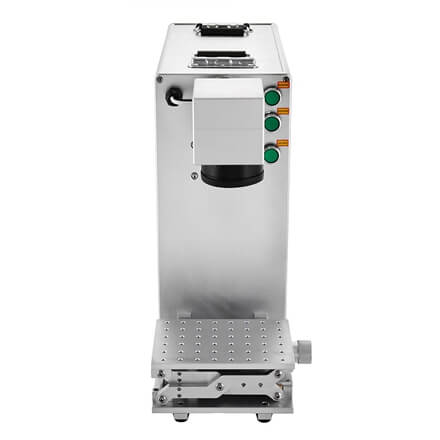

Portable Mini 20W Metal Laser Engraving Machine
| Category | Fiber Laser Marking Machine |
| Model No. | BE-F20A |
| Views | 54900 |
| Rating | ★★★★★4.7/5 Based on 500 Votes |
| Price Range | US$1499 – US$2899/Set |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Leading Time | 5-7 Days |
| Shipping | Air/Sea/Train/Truck |
| Warranty Period | Three Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
Mini metal laser engraving machines are a revolutionary tool that can unlock new possibilities for businesses. These machines allow companies to engrave intricate designs onto metal surfaces with exceptional precision and accuracy. This technology has many advantages, such as reducing production time, creating complex designs, and saving money.
The portable micro metal laser engraving machine has a high electro-optical conversion efficiency, a small size, superior output beam quality, high reliability, and other distinguishing characteristics.
Machine Feature:
◆ Long Lifespan: These machines are reliable, durable, and offer long-lasting performance, making them the perfect choice for any engraving project.
◆ Free of Maintenance and No Consumables: Fiber laser markers require essentially no maintenance during operation, as no consumables are required, saving labor and money.
◆ Easy Operation: No need to adjust the laser path, no need for professional skills and just common people can operate after 1-2 days of training, which lowers the use threshold.
◆ High-efficiency Photoelectric Conversion Rate: No loss of power coupling, no consumables, obviously reducing operating costs.
◆ Fast Speed: Because of the sophisticated Galvo head, the scanning speed may exceed 8000mm/s, significantly reducing the marking time.
◆ Wide Application: It enables marking on different materials, from metal, stainless steel, aluminum, iron, gold, silver, titanium, and other nonmetals plastic, ceramic, ABS.
◆ Environmental-Friendly: Not only do they require less energy and resources than traditional engraving machines, but they also produce far less waste and produce no hazardous fumes.
◆ Durability: Mini metal laser engraving machines are powerful tools that can be used for a variety of engraving applications. They offer reliable performance, precise results, and a long lifespan, making them the perfect choice for any job
Parts Introduction
Fiber Laser Source
- World famous fiber laser source, which has a lifetime of over 120,000 hours, no consumables, is free of maintenance with reliable quality.
- Extremely thin laser beam, and strong laser focusing capability to realize high precision marking.

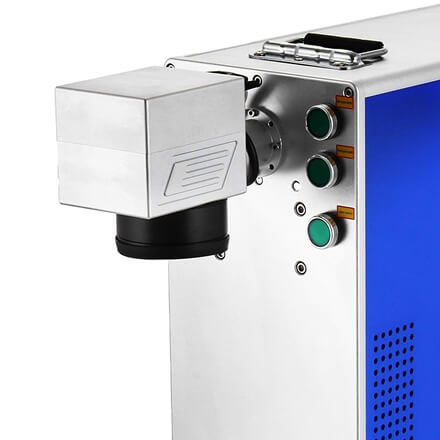

Sino-galvo digital scanning head
- Famous Sino-galvo digital scanning head, which a max speed reaching 8000mm/s, which ensures stability and efficiency and meets industrial marking requirements.
- High sensativity, high precision positioning and strong anti-interference.
JCZ controller card
- Original genuine Beijing JCZ controller card, the I/O port, ensure powerful functions and easy operation.
- High-sensitivity, fast speed and high accuracy

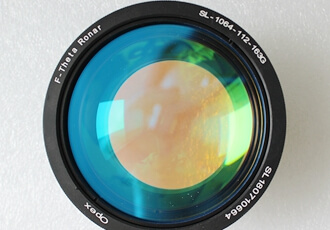

Singapore Imported Lens
- Singapore imported Wavelength Focus Lens, with strong focusing capability ensures fine quality laser beam.
- High Light Transmission and electro-optical conversion efficiency.
2D XY Working Table
- Operators can put the objects on the working table, which ensures the object is in.
- The working table can adjust the height to be suitable for different materials.
High Quality Aluminum Alloy Machine Box
- Integrated design with aluminum alloy materials, high rigidity, and on-deformation and get rusty forever.
- Whole machine’s appearance looks modern and beautiful.
Urgent Stop/Key Switch/Laser Switch
- Urgent Stop: When some error happens during marking, the operator can press the red urgent stop then the machine stops working.
- Key Switch: Machine On
- Laser Switch: Laser Source On
Exhaust Fan/Rotary Port/Foot Pedal Port/I/O signal port
- Even the machine is small size, but it is multifunctional.
Latest Version Ezcad Software
- Bitmap: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF
- Vector: AI, PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR
- Win10/Win8/Win7/XP (both 32 and 64 bit all supported

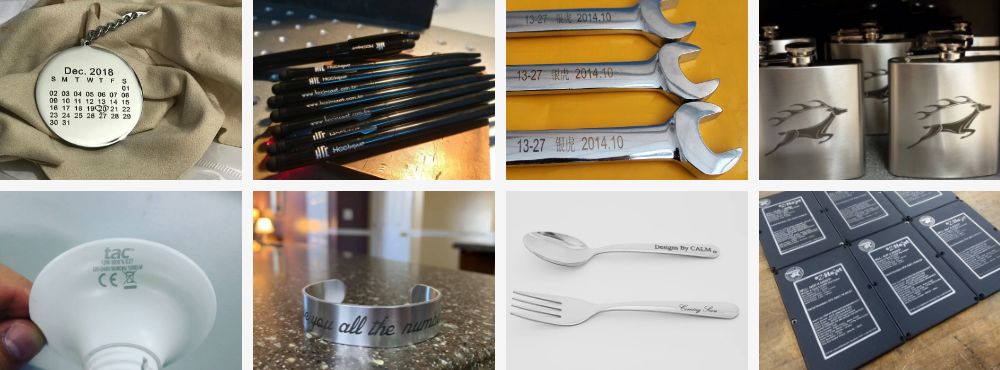

Application
Mini metal laser engraving machines are becoming increasingly popular and accessible tools for creative people looking to customize and personalize jewelry, tools, and other metal items. They offer a wide range of applications from engraving intricate patterns to etching text and images onto the surface of metal.
Mini metal laser engraving machines offer a wide range of uses, from industrial to personal projects. Whether you need to engrave logos, create intricate designs, or complete specialized tasks, these machines are capable of producing precise, high-quality results.
Optional Items

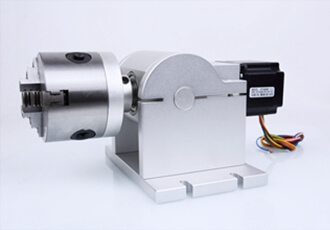

Rotary Device (65mm, 80mm, 100mm diameter)
Rotary device can hold the round object and rotate when marking. It realizes rotary working.
Focus Lens(70*70mm, 110*110mm, 175*175mm, 200*200mm, 300*300mm marking size)
The machine needs to equip with a different focus lens if the marking size is different.
Also, marking sizes is different, and power and laser spot size vary.

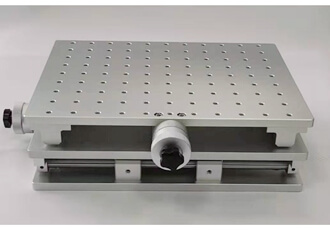

Working Table
It helps to adjust the focus distance.
XYZ axis can be adjusted up and down flexibly.

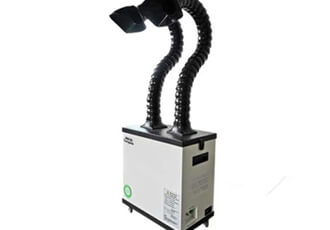

Fume Extractor
To protect the environment and human’s health, the fume extractor can clean the fumes and dust occurred when working.

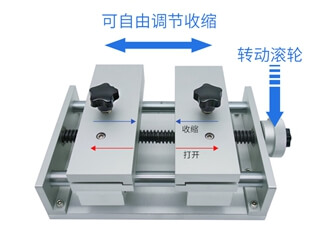

Cutting Fixture
This cutting fixture helps correct the metal plate and fix the thin plate without deformation, especially for gold plates, holographic foil etc.

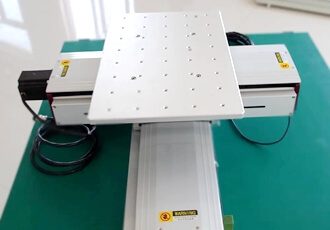

XY Electric Moving Table
It works when marking on big size material. It can divide the marking job into several times.
| Model | BE-F20A |
| Laser source | Raycus brand (IPG, MAX, JPT optional) |
| Laser power | 20W 30W 50W 100W |
| Weave length | 1064 nm |
| Marking area | 70*70mm, 110*110mm, 175*175mm, 220*220mm, 300*300mm |
| Laser repetition frequency | 20KHZ-80KHZ |
| Beam quality | 1.5 M² |
| Marking speed | 7000-12000mm/s |
| Marking depth | 0.01-1mm |
| Repetition Precision | 0.01mm |
| Minimum Line Width | 0.017mm |
| Minimum Character | 0.2 mm |
| Cooling Style | Air cooling |
| Positioning Way | Double Red Pointer |
| Laser Source Life Span | More than 120,000 hours |
| Control software | JCZ EZCAD |
| Supported Format | Bitmap: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF Vector: AI, PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR |
| Control board | ORIGINAL BJJCZ |
| Operating Voltage | AC220V/50HZ/ or AC110V/60HZ |
| Gross Power | ≤500W |
| Supported Windows | Windows |
| Certificate | ISO, CE, FDA |
| Material can be processed | all metal material and part of non-metal material, such as hard plastic |
| Others | USB cable for connection, U flash disk with software and English manuals and install video. |
| After-sales Service | Three years warranty for the machine. Whole life maintenance. We offer overseas engineering services if needed. We accept users to our factory for free training. |
| Packaging | Standard Export Plywood Box |
| Plug | European/America/UK/International different Plugs |
| Net Weight | 40kgs |
| Gross Package weight | 50kgs |
| Packaging Dimension | 79*35*70cm |

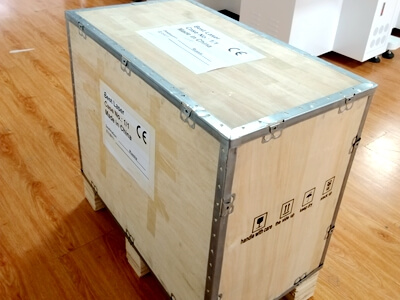

Package and Shipment
| Model | Net Weight | Package Size | Gross Weight | Volume |
| BE-F25 | 40KGS | 79×35×70CM | 50KG | 0.16CBM |
 |
 |
 |
| Inside layer is covered by thickening plastic film and fastened. | Middle Layer wrapped by thick sponge foam to avoid shaking on the way. | Outer layer packed by professional export thick wood craftcase. |
-
