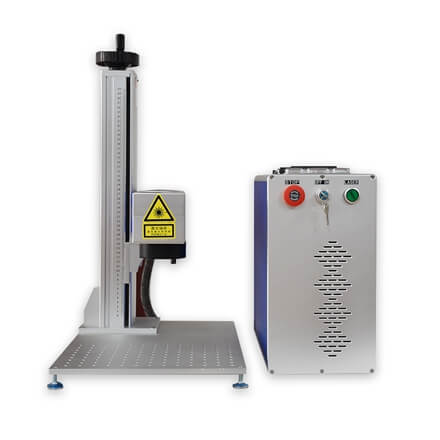

Widely Used 20W 30W 50W Fiber Laser Marking Machine
| Category | Fiber Laser Marking Machine |
| Model No. | BE-F20B |
| Views | 96800 |
| Rating | ★★★★★4.9/5 Based on 500 Votes |
| Price Range | US$1699 – US$2899/Set |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Production Time | 5-7 Days |
| Shipping | Air/Sea/Train/Truck |
| Warranty Period | Three Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
Fiber laser marking machines are the best option for businesses looking to mark their products with a high level of detail and accuracy. The 20W 30W 50W fiber laser marking machines provide the best combination of speed, precision, and affordability. Using a fiber laser marking system, a laser beam is used to engrave or etch an object. This process can be used to permanently mark or etch objects for identification purposes, or decorative purposes.
Machine Feature:
◆ Long Lifespan: The machine’s lifetime is above 120,000 hours due to the use of German sophisticated mature fiber optical technology, which greatly increases the service time.
◆ Free of Maintenance and No Consumables: Fiber laser markers require essentially no maintenance during operation, as no consumables are required, saving labor and money.
◆ Easy Operation: Lowering the usage threshold is the absence of the need to alter the laser route, the requirement for specialized knowledge, and the fact that after 1-2 days of instruction, anyone can use the device.
◆ High-efficiency Photoelectric Conversion Rate: There is no power coupling loss, no consumables, and thus no operational costs.
◆ Fast Speed: The scanning speed can exceed 8000 mm/s with the use of an upgraded Galvo head, significantly reducing the amount of time needed for marking.
◆ Powerful Marking Software: Different types of content can be tagged, including letters, patterns, characters, codes, and images. You are free to mark whatever you like. Simply load the marking file into the app.
◆ Wide Application: It may mark metal, stainless steel, aluminum, iron, gold, silver, titanium, and various nonmetals such as plastic, ceramic, and ABS.
◆ Environmental-Friendly: Non-pollution and safe to people.
◆ Durability: It can withstand harsh situations such as shock, vibration, high temperatures, and dust.
Parts Introduction
Fiber Laser Source
- The world’s most famous fiber laser source has a lifetime of over 120,000 hours, no consumables, and is maintenance-free with consistent quality.
- To achieve high precision marking, an extremely thin laser beam and great laser focusing capacity are required.
Sino-galvo digital scanning head
- The well-known Sino-galvo digital scanning head, with a maximum speed of 8000mm/s, ensures stability and efficiency while meeting industrial marking requirements.
- High sensitivity, high precision positioning, and powerful anti-interference capabilities.
JCZ controller card
- Powerful functionality and simple operation are guaranteed by the original Beijing JCZ controller card and the I/O port.
- High sensitivity, quick speed, and precision
Singapore Imported Lens
- Strong focusing capabilities of the Wavelength Focus Lens, which was imported from Singapore, guarantee a high-quality laser beam.
- Light transmission and electro-optical conversion efficiency are both high.
2D XY Working Table
- Operators can place the objects on the working table to guarantee that they are in.
High Quality Aluminum Alloy Machine Box
- Integrated design using aluminum alloy materials, high rigidity, non-deformation, and long life.
- The overall appearance of the equipment is modern and stunning.
Urgent Stop/Key Switch/Laser Switch
- Urgent Stop: If an error occurs during marking, the operator can stop the machine by pressing the red urgent stop button.
- Switch: On for machine
- Switching on the laser: Laser Source
Exhaust Fan/Rotary Port/Foot Pedal Port/I/O signal port
- Even the machine is little size, yet it is multipurpose.
Latest Version Ezcad Software
- BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF are all bitmap formats.
- Vector: Win10/Win8/Win7/XP (both 32 and 64 bit are supported) AI, PLT, DXF, DST, SVG, JPC, NC, G, BOT, and GBR
Application
Various metal and non-metal materials, including common metals like iron, copper, magnesium, and aluminum, rare metals like gold, silver, titanium, and platinum, and different metal oxides, can be marked with a desktop laser marking machine. Along with engraving, other processes include electroplating, coating, ABS, epoxy resin, ink, engineering plastics, and oxides of different hard alloys.
Optional Items
Rotary Device (65mm, 80mm, 100mm diameter)
When marking, the rotary device can hold the circular item and rotate it. It enables rotary operation.
Focus Lens(70*70mm, 110*110mm, 175*175mm, 200*200mm, 300*300mm marking size)
If the marking size varies, the machine must be outfitted with a separate focus lens.
Furthermore, marking sizes differ, as do power and laser spot sizes.
Working Table
It aids in adjusting the focus distance.
The XYZ axis can be moved up and down with ease.
Fume Extractor
To safeguard the environment and human health, the fume extractor can clean up any fumes or dust that may have been generated while working.
Cutting Fixture
This cutting fixture aids in the correction of metal plates and the fixing of thin plates without distortion, particularly for gold plates and holographic foil.
XY Electric Moving Table
It works when marking on big size material. It can divide the marking job into several times.
| Model | BE-F20B |
| Laser source | Raycus brand (IPG, MAX, JPT optional) |
| Laser power | 20W 30W 50W 100W |
| Weave length | 1064 nm |
| Marking area | 70*70mm, 110*110mm, 175*175mm, 220*220mm, 300*300mm |
| Laser repetition frequency | 20KHZ-80KHZ |
| Beam quality | 1.5 M² |
| Marking speed | 7000-12000mm/s |
| Marking depth | 0.01-1mm |
| Repetition Precision | 0.01mm |
| Minimum Line Width | 0.017mm |
| Minimum Character | 0.2 mm |
| Cooling Style | Air cooling |
| Positioning Way | Double Red Pointer |
| Laser Source Life Span | More than 120,000 hours |
| Control software | JCZ EZCAD |
| Supported Format | Bitmap: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF Vector: AI, PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR |
| Control board | ORIGINAL BJJCZ |
| Operating Voltage | AC220V/50HZ/ or AC110V/60HZ |
| Gross Power | ≤500W |
| Supported Windows | Windows |
| Certificate | ISO, CE, FDA |
| Material can be processed | all metal material and part of non-metal material, such as hard plastic |
| Others | USB cable for connection, U flash disk with software and English manuals and install video. |
| After-sales Service | Three years warranty for machine.Whole life maintenance. We offer overseas engineer service if needed. We accept user to our factory for free training. |
| Packaging | Standard Export Plywood Box |
| Plug | European/America/UK/International different Plugs |
| Net Weight | 50kgs |
| Gross Package weight | 62kgs |
| Packaging Dimension | 78*48*42cm |
Package and Shipment
| Model | Net Weight | Package Size | Gross Weight | Volume |
| BE-F20B | 50KGS | 85×41×82CM | 62KG | 0.28CBM |
 |
 |
 |
| Inside layer is covered by thickening plastic film and fastened. | Middle Layer wrapped by thick sponge foam to avoid shaking on the way. | Outer layer packed by professional export thick wood craftcase. |
-
